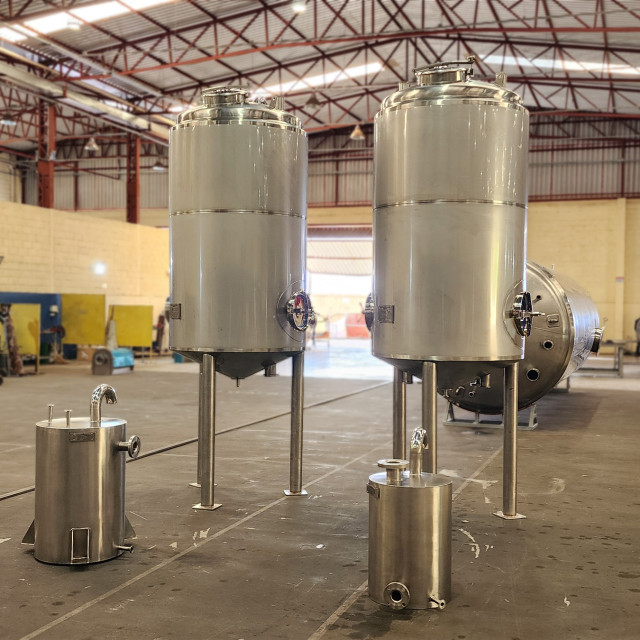

Industrial tanks and reactors are equipment designed for the storage, mixing and processing of fluids in chemical, pharmaceutical and food operations. With a capacity of up to 10,000 liters, an industrial process tank guarantees perfect homogenization and thermal control necessary for complex reactions, being developed to achieve maximum performance and durability.
For 15 years in the industrial agitation and mixing solutions market, Agimix develops tailor-made projects to increase the efficiency of your plant. We manufacture everything from the stainless steel mixing tank to the complete industrial process reactor, integrating high-performance agitation systems that guarantee excellent productivity by combining technology and robustness.
For processes that require a high degree of asepsis, such as in the chemical and pharmaceutical industries, our pharmaceutical reactor with magnetic stirrer offers total safety against contamination. It is important to highlight that, for large operations such as sugar and ethanol plants, petrochemical plants and mining companies, we do not manufacture giant reservoirs, but we supply the agitation and circulation system sized to be installed in the tank that the customer already has, guaranteeing the same technical excellence.
In addition to traditional configurations, we design modular units such as the process skid with polypropylene agitator tanks, ideal for preparing corrosive solutions. Whether integrating masseiras for dispersion or pots, bins and containers with high shear pumps for clump breaking and process recirculation, we deliver the complete mixing project for your needs.
Reduces mixing time and ensures batch standardization with the use of an optimized industrial process reactor.
Systems with a heating or cooling jacket maintain the ideal reaction temperature, avoiding losses of inputs and guaranteeing quality.
Made from high-purity stainless steel, our equipment such as the pharmaceutical reactor guarantees zero contamination in demanding processes.
The correct dimensioning of the agitation system avoids wasting electrical energy during the continuous or batch process.
We develop everything from the compact mixing tank to integrated systems in process skid according to your plant's needs.
These specifications are not fixed for every piece of equipment: they represent possibilities available on some of the listed models. Contact our sales team to confirm the information and the ideal configuration for your operation.
| Own manufacturing capacity | Up to 10,000 liters |
| Building material | Stainless Steel 304, 316L, Carbon Steel or Polypropylene (PP) |
| Sanitary finish | Mechanical polishing or electropolishing (Ra < 0.5 µm) |
| Thermal exchange systems | Half-round shirt, full shirt or internal serpentine |
| Design pressure | Atmospheric up to 10 bar (according to ASME standard) |
| Types of impellers | Inclined blades, anchor, Rushton turbine, cowles or magnetic |
| Integrated accessories | Wavebreakers (baffles), spray balls for CIP, displays and sensors |
| Large applications | Exclusive supply of the agitation system (top entry or side entry) |
Agimix reactors and agitators ensure excellent productivity uniting technology.
Special reactors for more demanding processes with a high degree of asepsis.
Ideal high shear pumps for lump breaking and process recirculation.
Kneading Mixers: The Agimix Kneading Machine is ideal for you. Equipment for industrial dispersion and mixing.
With agitation system for preparation. Polypropylene agitators tanks
Agimix industrial process tanks are developed and manufactured to achieve the maximum performance and durable to their process.
Direct answers to the most common questions about this equipment and its application.
The industrial mixing tank is a vessel designed to homogenize, disperse or suspend fluids and solids. It serves to ensure that the mixture reaches the correct viscosity and composition, and is widely used in the chemical, food and cosmetic industries to standardize production.
The main difference is that the industrial process reactor is designed to support chemical reactions under strictly controlled conditions of pressure and temperature. While the tank focuses primarily on physical mixing, the reactor has complex heat exchange and reinforced sealing systems to ensure the safety of the reaction.
We do not manufacture large-scale tanks for these sectors, as our own line of tanks goes up to 10,000 liters. For plants, petrochemical plants and mining companies, we supply the complete agitation and circulation system, custom designed to be installed in the large tank that the customer already has.
We use high purity alloys, mainly 316L stainless steel, due to its excellent resistance to corrosion and ease of sanitization. For special processes that require a high degree of asepsis, the pharmaceutical reactor with magnetic stirrer eliminates the need for conventional mechanical seals, avoiding any risk of contamination.
Yes, we design and assemble the complete process skid, which integrates the tank, pumps, piping and control panel into a single modular structure. This solution, which can include polypropylene agitator tanks or stainless steel, greatly facilitates installation and start-up at the customer's plant.
Lump breaking is carried out through the integration of high shear pumps or cowle dispersers directly into the mixing system. We use pots, bins and containers coupled to these pumps to ensure continuous recirculation of the process and obtaining a perfectly smooth and homogeneous dough.
Yes, our tanks and reactors can be equipped with heating or cooling jackets, in half-round or full-length format. This thermal control is essential for chemical and food processes that require maintaining a strict temperature throughout the batch.
Agimix's masseiras are robust equipment specifically designed for the dispersion and industrial mixing of very high viscosity products. They are recommended when a conventional agitator cannot move the heavy mass, being ideal for the manufacture of plastic masses, adhesives, sealants and dense compounds.
Speak to our engineers and discover how a custom-made mixing tank can optimize your industrial production.
