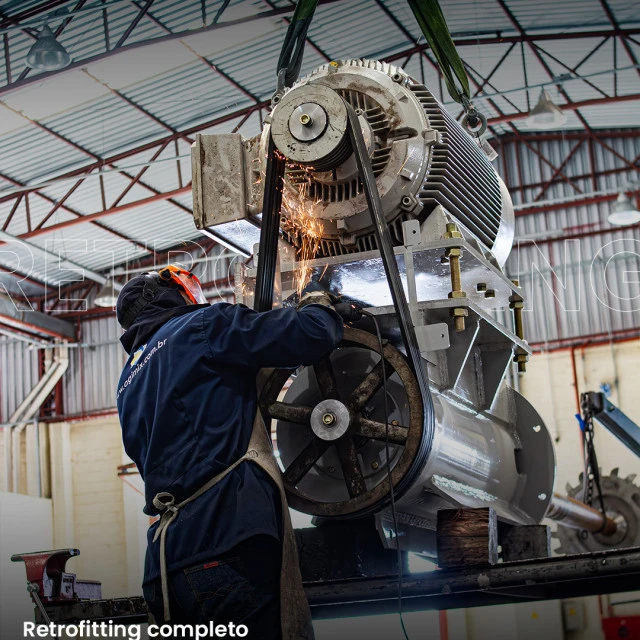

The retrofit of paint dispersers is the process of updating and modernizing industrial equipment focused on dispersing solids in liquids, ensuring greater production efficiency. This solution allows paint, varnish and chemical factories to reuse their existing heavy structures, upgrading agitation and drive systems to achieve ideal fineness in formulations more quickly and economically.
Agimix has been in the industrial agitation and mixing solutions market for 15 years, serving the industry in general with high reliability projects. If your plant needs more agility in batch production, upgrading to a Dispersor with Hydraulic Lifting offers quick pan exchange, drastically optimizing setup time between different batches and reducing the team's operational effort.
For plants that already have an infrastructure in place, the Vertical Dispersor is custom-made to be quickly integrated into your pan or existing tank. It is important to highlight that Agimix manufactures its own reservoirs of up to 10,000 liters, but for larger volumes, we supply the complete dispersion system perfectly dimensioned and installed in the structure that the customer already has on site.
Investing in the modernization of industrial dispersers means reducing energy consumption, reducing maintenance stops and increasing the stability of formulations. With highly durable components and cutting-edge technology, our retrofit projects transform obsolete equipment into high-performance machines, ensuring a quick and safe return on investment for your paint and varnish production line.
Modernization with the Dispersor with Hydraulic Elevation allows quick change of pans, significantly accelerating batch production.
The project is custom-made for your existing tank, ensuring quick integration into your plant without the need for complex works.
The retrofit ensures high efficiency in the dispersion of solids in liquids, resulting in paints and varnishes with the ideal degree of fineness and without lumps.
Upgrading the agitation system consumes fewer resources than purchasing an entire new machine, optimizing return on investment and reducing energy consumption.
Modern hydraulic lifting systems reduce the manual effort of operators, adapting the paint factory to current safety standards.
These specifications are not fixed for every piece of equipment: they represent possibilities available on some of the listed models. Contact our sales team to confirm the information and the ideal configuration for your operation.
| Service Capacity (Agimix Tanks) | Up to 10,000 liters (or custom adaptation to larger customer tanks) |
| Manufacturing Material (Parts in contact) | Stainless Steel 304 or 316L |
| Elevation Type (Optional) | Column hydraulic lifting system |
| Axis Rotation | High RPM (typical 500 to 1,500 RPM, scaled by design) |
| Impeller Type | Cowles disc (specific profile for high shear rate) |
| Engine Power | 5 CV to 150 CV (sized according to the volume and viscosity of the paint) |
| Main Application | Dispersion of solids in liquids for paints, varnishes and chemicals |
| Fixing Mode | In its own column or flanged to the existing pan/tank |
Direct answers to the most common questions about this equipment and its application.
The disperser retrofit is the technological update of old equipment to improve the dispersion of solids in liquids. This process replaces worn-out components (such as shafts, impellers and motors) with modern systems, increasing efficiency and reliability in the production of paints and varnishes.
The main advantage is cost reduction, as you reuse the heavy structure of the machine and only update the agitation and drive system. This ensures new equipment performance with a significantly lower investment and shorter implementation time.
Yes, the Vertical Dispersor is manufactured to measure to be perfectly integrated into your pan or existing tank. Our engineering team designs the flange, shaft length and disc diameter to ensure quick installation without complex adaptations in your plant.
hydraulic lifting allows quick change of pans during batch production. With the Dispersor with Hydraulic Lifting, the operator lifts the agitator assembly in an automated and safe way, removes the full pan and inserts an empty one in a few minutes.
No, Agimix manufactures its own tanks with a maximum capacity of up to 10,000 liters. For larger volumes, common in large chemical and petrochemical industries, we only supply the complete dispersion system, which is designed and installed in the large tank that the customer already has.
The retrofit ensures that the disperser propeller (such as the Cowles disc) operates at the correct rotation and power, reaching the degree of fineness required by the formulation. This eliminates the formation of lumps, improves homogeneity and guarantees the stability and perfect finish of paints and varnishes.
The deadline varies depending on the complexity of the project, but quick integration into the plant is an absolute priority in Agimix projects. As the equipment is designed to measure, the final installation on site is usually agile, minimizing machine downtime in your factory.
The parts in direct contact with the product are manufactured in 304 or 316L Stainless Steel, depending on the chemical aggressiveness of the paint formulation. These noble materials guarantee high resistance to corrosion, prevent contamination and facilitate cleaning the equipment between different production batches.
Talk to our engineers and discover how disperser retrofit can improve the quality of your paints with excellent cost-benefit.
