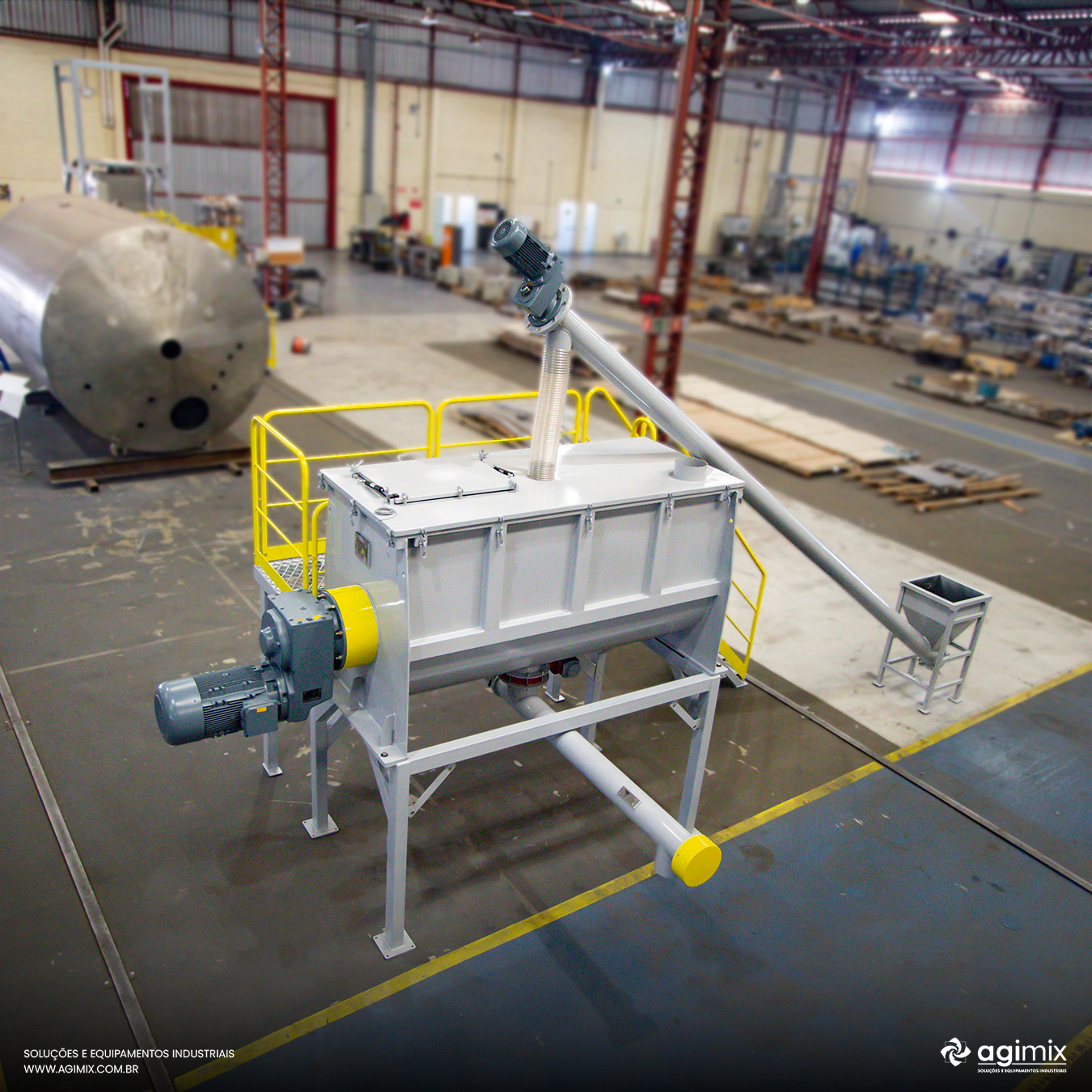

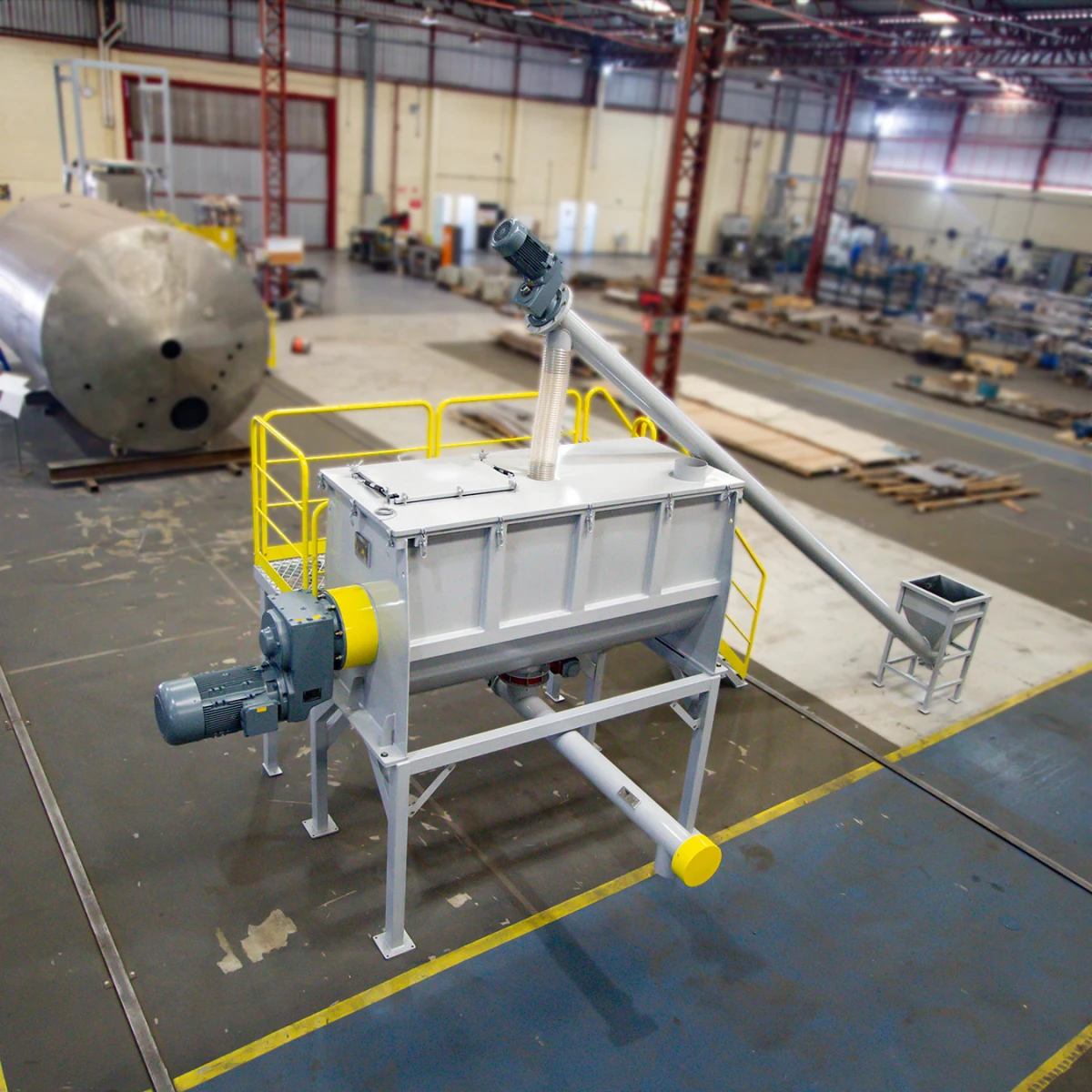

The Ribbon Blender mixer is used to homogeneously mix powders, granules, and other dry materials, being widely used across various industries. Check out some of them:

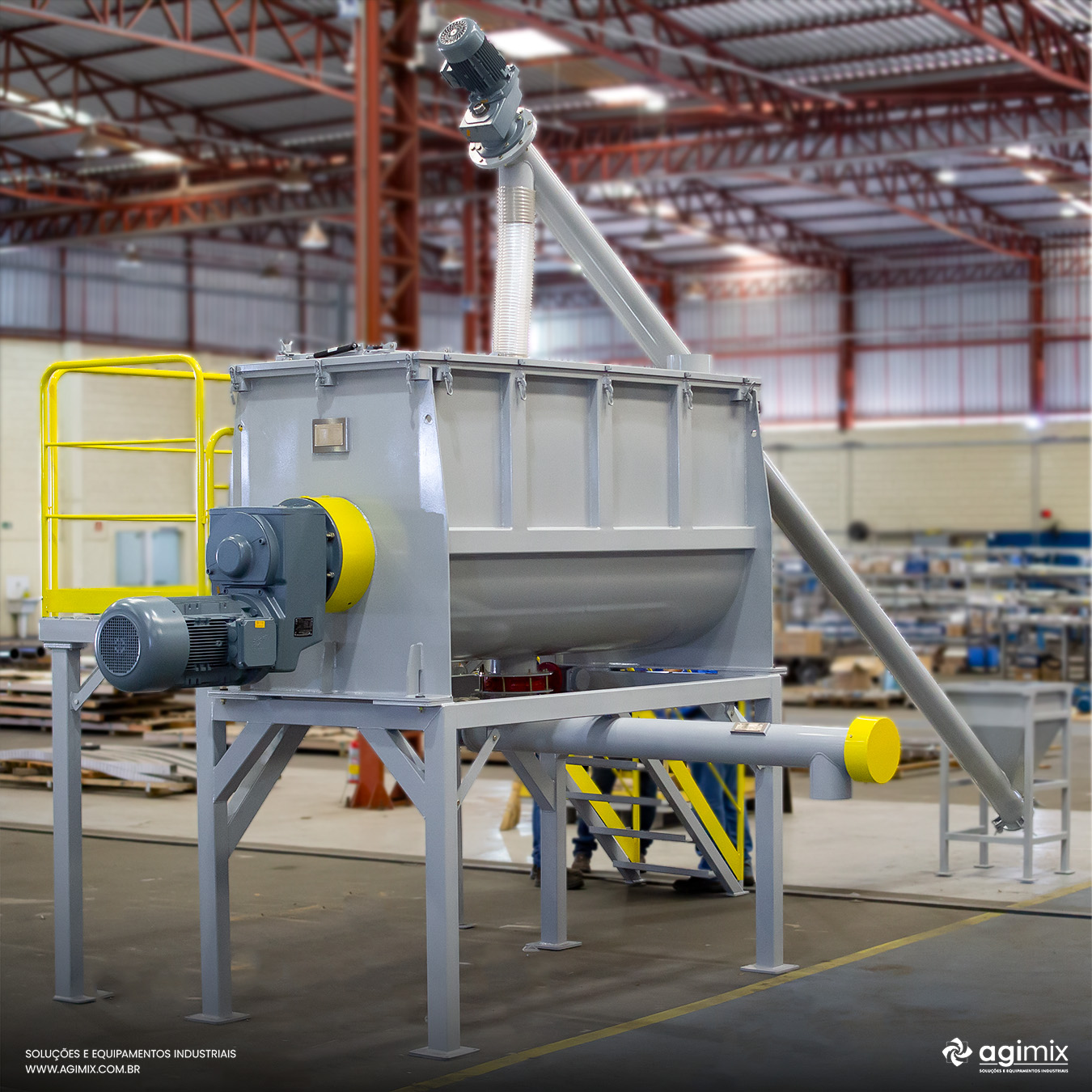

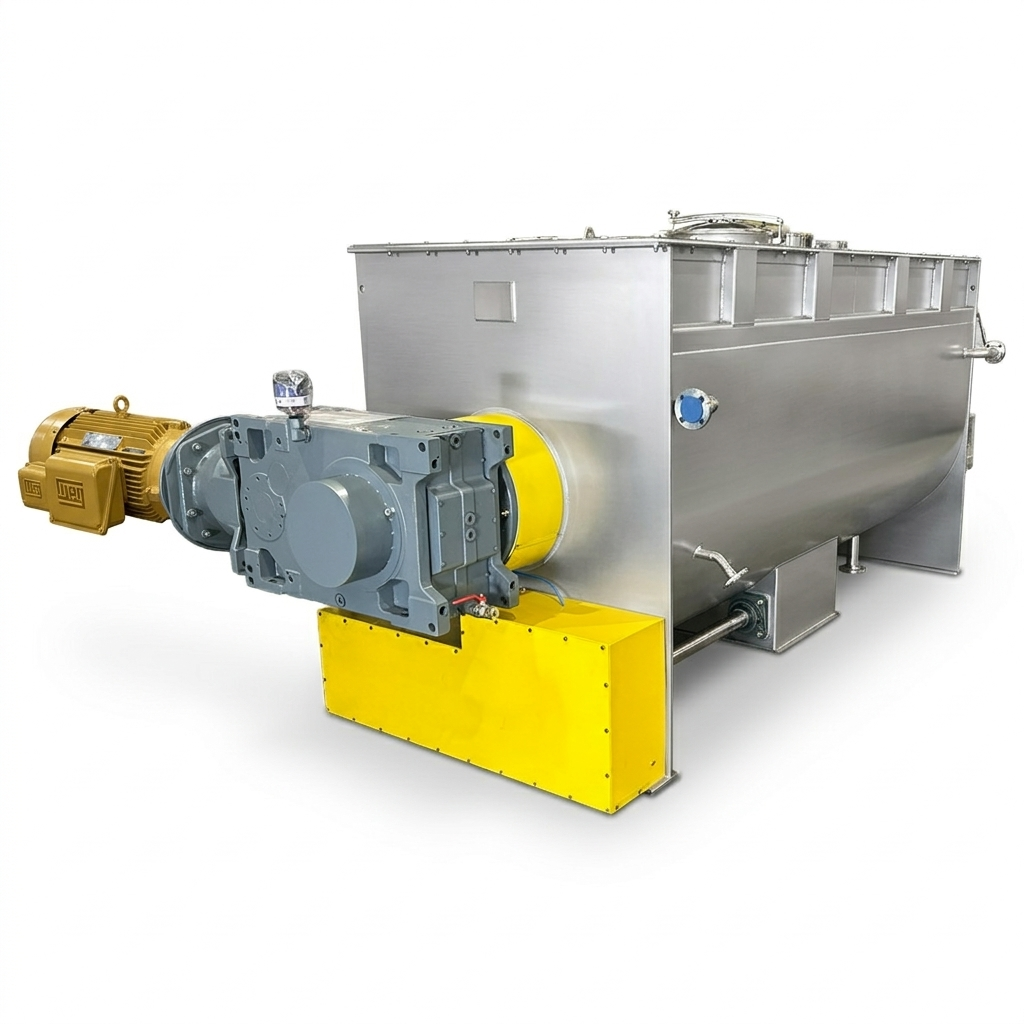

Our Agimix Ribbon Blender stands out in the market by offering advanced solutions in powder, granulate, and paste product homogenization. Discover the main differentiators that ensure efficiency, safety, and superior quality.
Available in capacities ranging from 50 to 15,000 liters, the Agimix Ribbon Blender is ideal for meeting a wide range of industrial demands, from small-scale production to large volumes.
Equipado com fitas helicoidais internas que giram em direções opostas, o Ribbon Blender proporciona uma mistura homogênea e eficiente, reduzindo o tempo de processamento e melhorando a qualidade do produto final.
Custom-built with high-quality materials, the mixer ensures long service life and wear resistance, even under intensive operating conditions.
Ideal for various industrial sectors, such as food, cosmetic, pharmaceutical, and chemical, the Ribbon Blender can process a wide range of materials, from dry powders to heat-sensitive products.

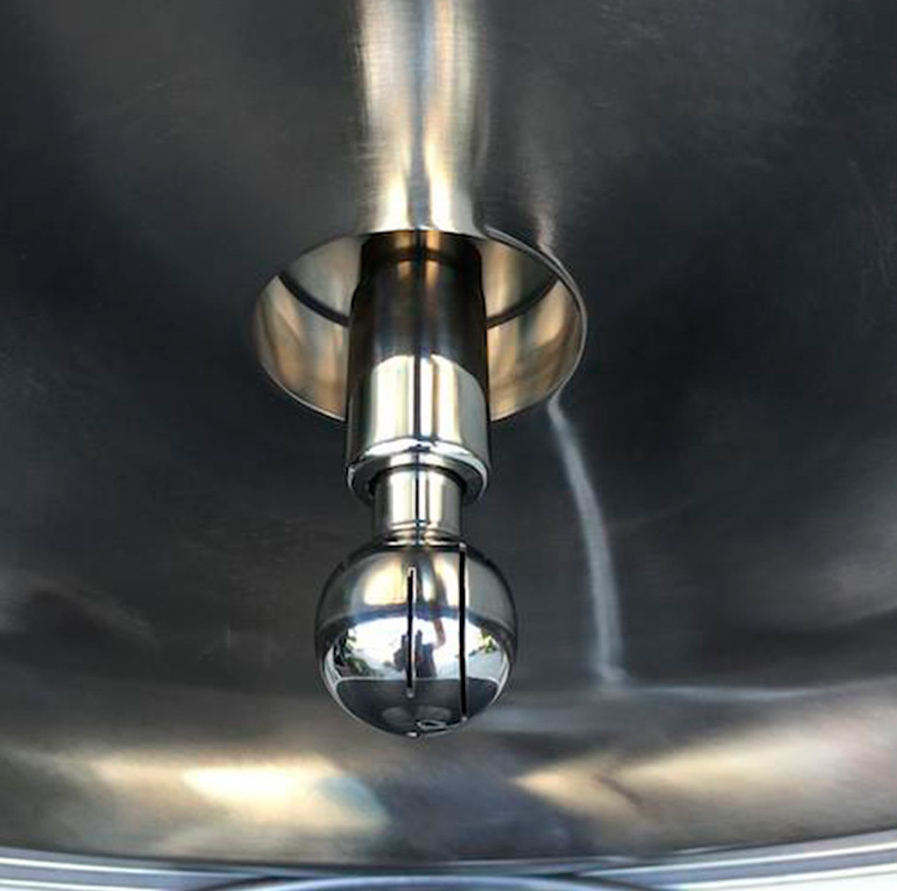

Designed to facilitate cleaning and maintenance, the mixer features smooth and accessible surfaces, reducing downtime and ensuring compliance with strict sanitary standards.
System Code Standard (Agimix) | Usable Volume | Total Volume | Dimensions (approximate) |
Installed Power up to 1.0 g/dm³ (high friction) |
Number of Outlets | Mouth Diameter | Hatch Type | |||
Liters | Liters | Length | Width | Height without base (closed) | Height without base (open) | |||||
AGX-RB-50/90 | 50 | 90 | 1350 | 500 | 600 | 1000 | 1,5 | 1 | 4 in | Butterfly (Mech) |
AGX-RB-100/180 | 100 | 180 | 1700 | 620 | 720 | 1200 | 3,0 | 1 | 4 in | Butterfly (Mech) |
AGX-RB-150/270 | 150 | 270 | 1900 | 700 | 800 | 1300 | 4,0 | 1 | 4 in | Butterfly (Mech) |
AGX-RB-250/450 | 250 | 450 | 2250 | 820 | 930 | 1520 | 5,0 | 1 | 4 in | Butterfly (Mech) |
AGX-RB-350/630 | 350 | 630 | 2500 | 920 | 1050 | 1700 | 6,0 | 1 | 6 in | Butterfly (Mech) |
AGX-RB-500/900 | 500 | 900 | 2820 | 1050 | 1180 | 1950 | 7,5 | 1 | 8 in | Pneumatic |
AGX-RB-750/1350 | 750 | 1350 | 3220 | 1180 | 1340 | 2200 | 10,0 | 1 | 8 in | Pneumatic |
AGX-RB-1000/1800 | 1000 | 1800 | 3340 | 1120 | 1250 | 2200 | 15,0 | 1 | 8 in | Pneumatic |
AGX-RB-1250/2250 | 1250 | 2250 | 3620 | 1200 | 1350 | 2380 | 20,0 | 1 | 10 in | Pneumatic |
AGX-RB-1500/2700 | 1500 | 2700 | 3835 | 1270 | 1430 | 2510 | 25,0 | 1 | 10 in | Pneumatic |
AGX-RB-2000/3600 | 2000 | 3600 | 4230 | 1400 | 1580 | 2770 | 30,0 | 1 | 10 in | Pneumatic |
AGX-RB-3000/5400 | 3000 | 5400 | 4820 | 1600 | 1805 | 3150 | 40,0 | 1 | 12 in | Pneumatic |
AGX-RB-4000/7200 | 4000 | 7200 | 5300 | 1850 | 1980 | 3460 | 50,0 | 1 | 12 in | Pneumatic |
AGX-RB-5000/9000 | 5000 | 9000 | 4900 | 2100 | 2600 | 2800 | 50,0 | 1 | 12 in | Pneumatic |
AGX-RB-6000/10800 | 6000 | 10800 | 5200 | 2200 | 2800 | 3000 | 60,0 | 3 | 12 in | Pneumatic |
AGX-RB-7500/13500 | 7500 | 13500 | 5600 | 2500 | 3100 | 3300 | 75,0 | 3 | 12 in | Pneumatic |
AGX-RB-10000/18000 | 10000 | 18000 | 6200 | 2650 | 3400 | 3600 | 75,0 | 3 | 12 in | Pneumatic |
AGX-RB-12500/22500 | 12500 | 22500 | 6700 | 2850 | 3600 | 3800 | 100,0 | 3 | 12 in | Pneumatic |
AGX-RB-15000/27000 | 15000 | 27000 | 7200 | 2950 | 3800 | 4000 | 100,0 | 3 | 12 in | Pneumatic |
*Information is subject to change without prior notice. Please consult Agimix in advance.

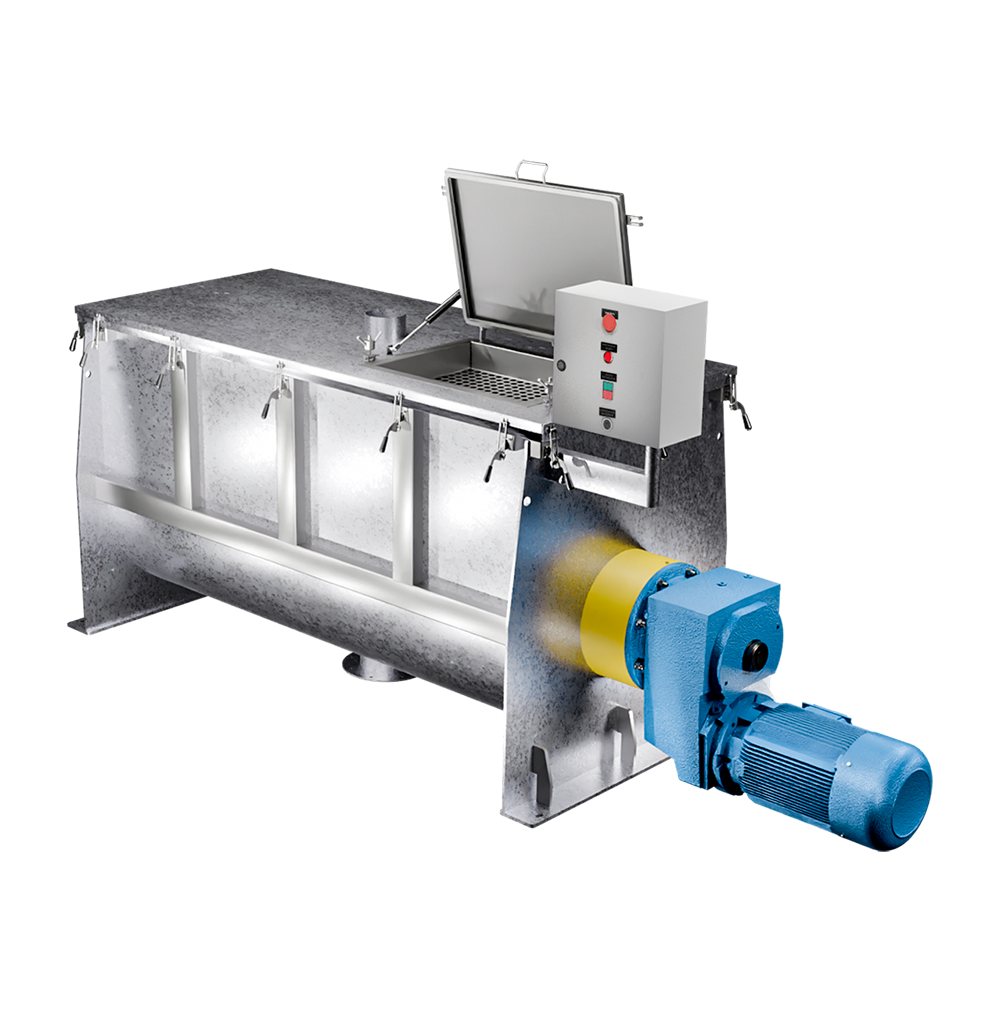

The Agimix Ribbon Blender Mixer is designed to quickly and uniformly mix powders, granules, and other dry materials, efficiently serving the food, pharmaceutical, chemical, and cosmetic industries.

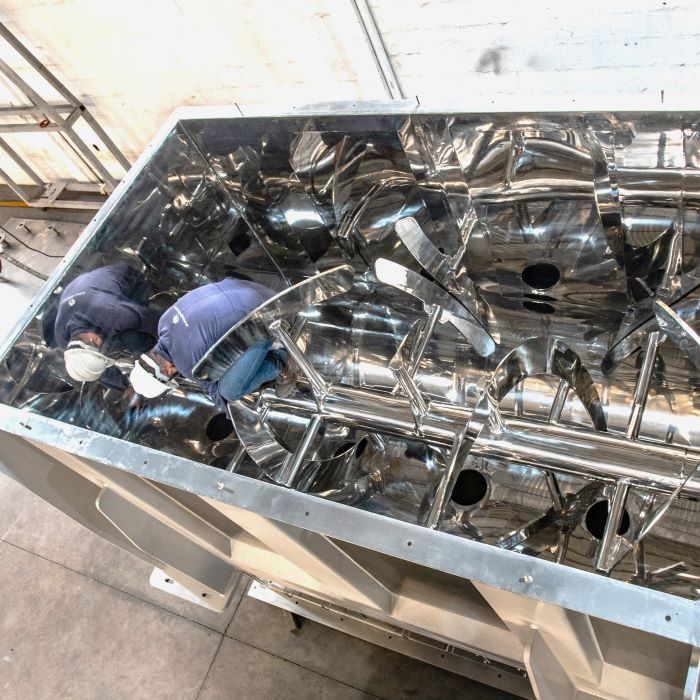

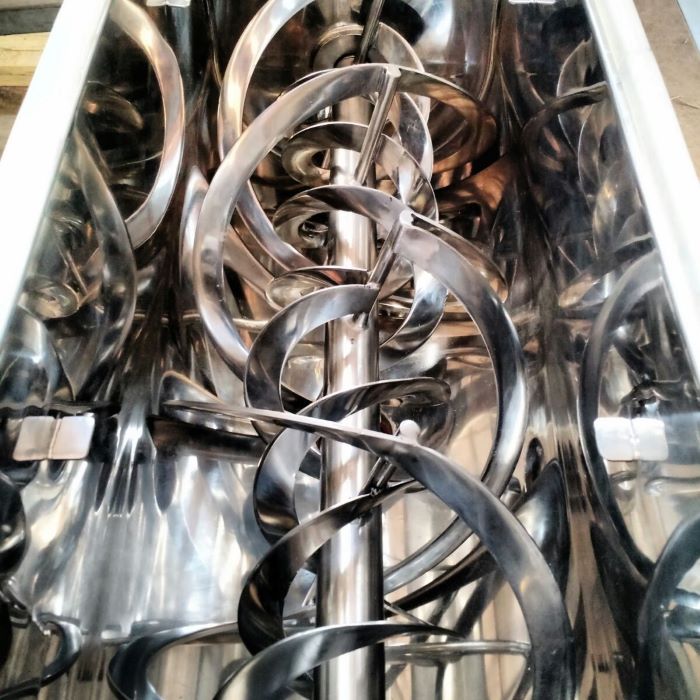

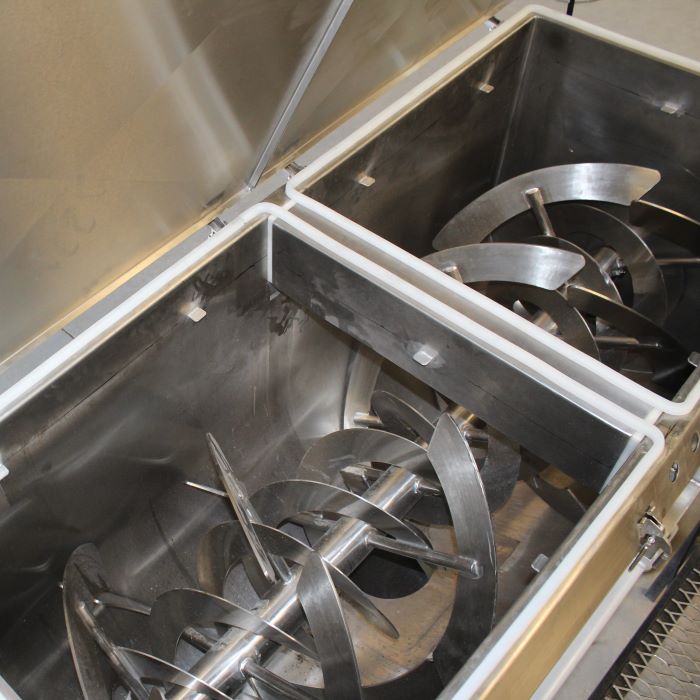

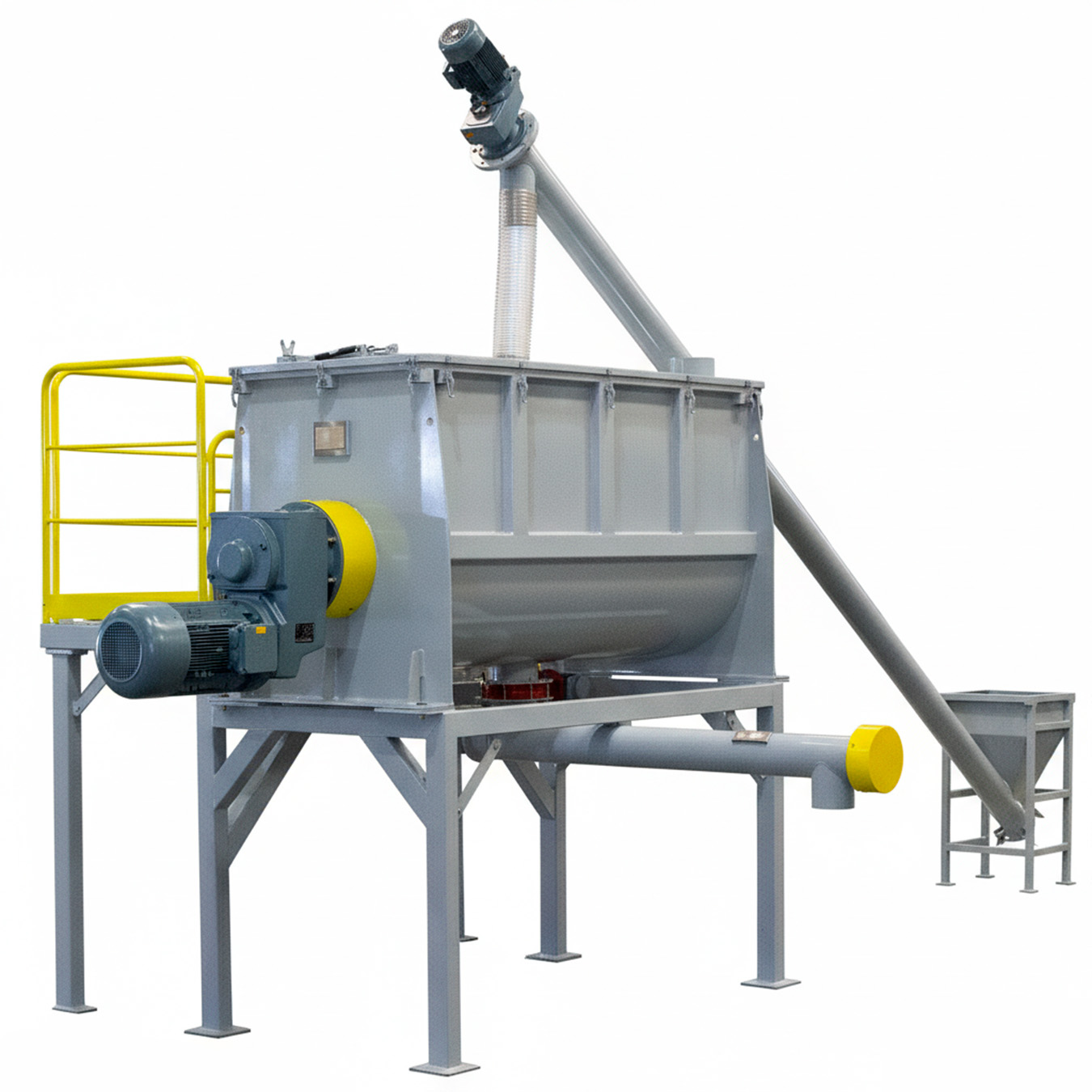

Its operation is based on two ribbon-shaped helices rotating in opposite directions inside a "U"-shaped trough, ensuring all material is moved and mixed evenly.
Preparation
● Verify that the equipment is correctly installed, grounded, and connected to the power supply.
● Always use the appropriate personal protective equipment (PPE), such as gloves and safety goggles.
Loading
● Open the blender lid and add the ingredients to the trough, respecting the equipment's usable capacity to avoid overloading.
Start of Mixing
● Close the lid and select the appropriate rotation speed on the control panel according to the material's characteristics.
Monitoring
● Monitor the process to ensure the mixture is homogeneous.
● Adjust the time or speed if necessary to achieve the ideal result.
Product Discharge
● After mixing, turn off the equipment.
● Open the discharge valve to safely release the processed material.
Agimix Ribbon Blenders offer high efficiency, robustness, and low operational cost. Manufactured in stainless steel or carbon steel, adaptable to multiple sectors, and with post-sale technical support, they ensure consistent performance and industrial reliability.
Choose based on production volume per batch, the bulk density of materials, and operation frequency. Fill between 65% and 80% of the total capacity for effective displacement. Agimix provides customized designs according to the client's production needs.
Recommended maintenance includes:
These practices increase service life and maintain stable performance.

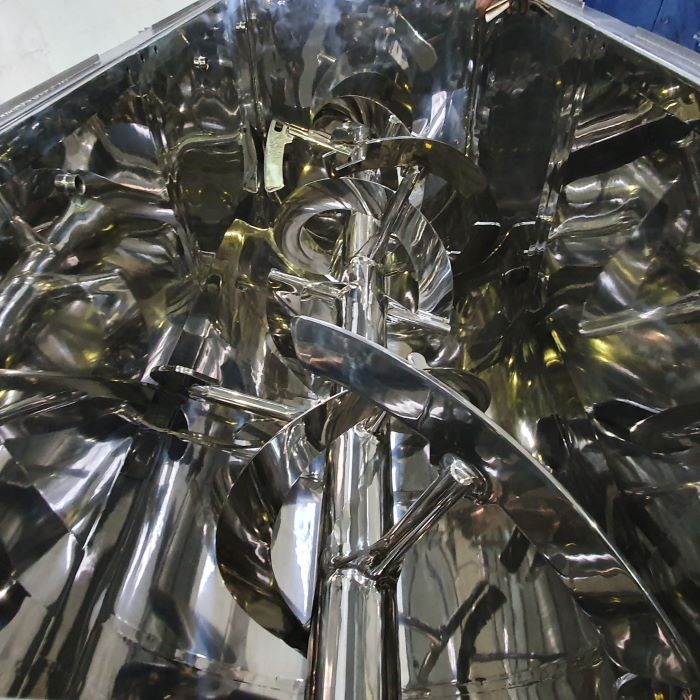

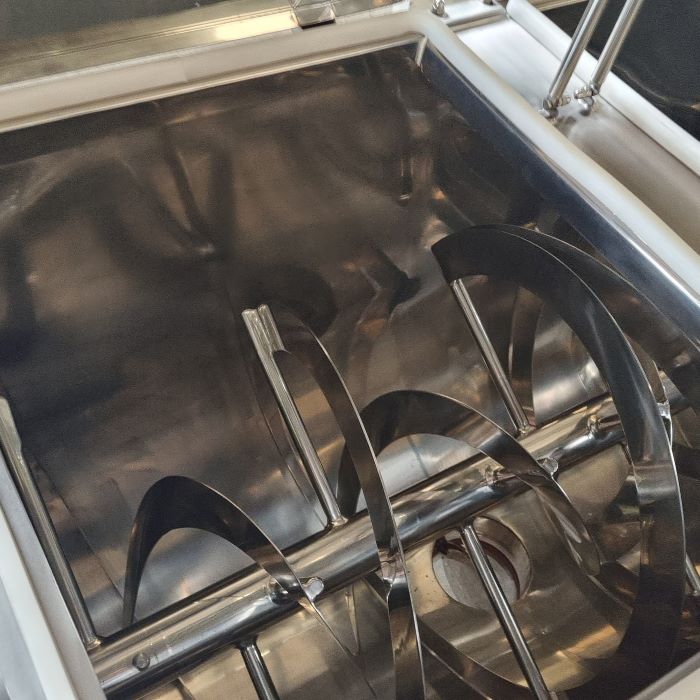

The Agimix Ribbon Blender models are built in polished stainless steel, with a ribbon-to-tank clearance of 3 to 5 mm and rounded welds. These features facilitate cleaning and prevent dead zones, reducing cross-contamination.
Agimix offers the Ribbon Blender for segments such as food, pharmaceutical, cosmetic, chemical, steel, paper and pulp, petrochemical, and animal feed. The product stands out for its versatility and high performance across different industrial sectors.
The Agimix models handle working volumes ranging from 50 to 10,000 liters, with customization options according to the client's needs.
The Agimix Ribbon Blender is designed to achieve homogeneity with minimal deviations (below 3%), usually in 3 to 10 minutes, depending on the density and type of material. Ideal for optimized production processes.
