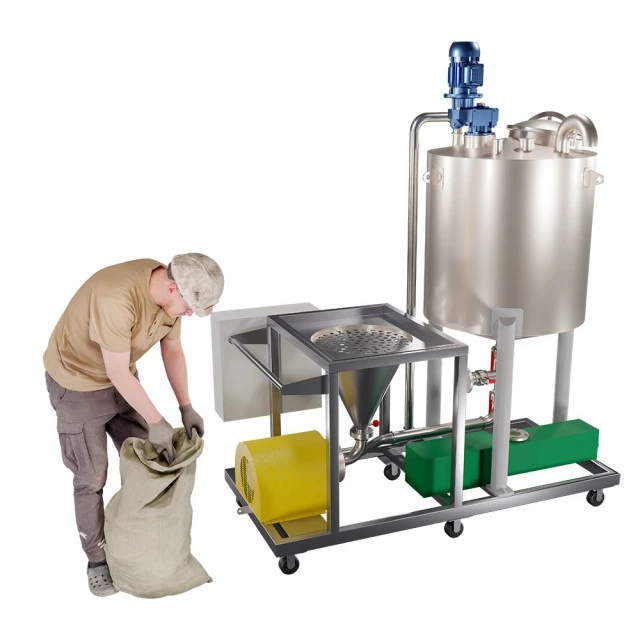

The Skid Triblender is a compact and efficient system designed for the fast and homogeneous incorporation of powders into liquids. This equipment operates through an advanced integrated rotor-stator system, making it the ideal solution for processes that require high shear in the food, beverage and pharmaceutical industries.
The use of Skid Triblender Mixers guarantees proportional pumping and optimal stability of emulsions. The system can be configured with one or two pumps, offering extreme versatility for both recirculation in tanks and the safe transfer of complex fluids.
For 15 years in the market for industrial agitation and mixing solutions (agitators, tanks, reactors, mixers, dispersers and related equipment), Agimix develops complete projects to meet the most rigorous requirements of the industry in general. Our systems can be integrated into Process Skid Tanks and Reactors, which have an agitation system for preparation and use polypropylene agitator tanks (for volumes of up to 10,000 liters), ensuring total chemical compatibility and operational efficiency.
Opting for a skid mixing system from Agimix means investing in cutting-edge technology that eliminates lumps and optimizes process time. Our equipment provides a high performance mixture, reducing raw material waste and raising the quality standard of the final product.
The advanced integrated rotor-stator system guarantees efficient particle breaking and optimal emulsion stability.
Eliminates the formation of lumps by incorporating powders into liquids in a continuous and homogeneous manner.
Designed to withstand intense routines, the system can be coupled to polypropylene agitator tanks with high chemical resistance.
The Skid Triblender Mixers reduces batch time, reducing energy consumption and the waste of high-cost raw materials.
Equipped with one or two pumps, the system allows easy adaptation for both recirculation in tanks and direct transfer.
These specifications are not fixed for every piece of equipment: they represent possibilities available on some of the listed models. Contact our sales team to confirm the information and the ideal configuration for your operation.
| Mixing System | High shear integrated rotor-stator |
| Pumping Setup | 1 or 2 pumps integrated into the skid |
| Process Tank Material | Polypropylene (PP) |
| Maximum Capacity of Agimix Tanks | Up to 10,000 liters |
| Main Application | Incorporation of powders into liquids and stabilization of emulsions |
| Operating Modes | Recirculation in tanks and fluid transfer |
| Sectors Served | Food, beverage and pharmaceutical industry |
Ideal high shear pumps for lump breaking and process recirculation.
Agimix's triblender mixture system, equipped with one or two pumps and an advanced integrated rotor-state system, is a versatile solution for both tanks and transfer recirculation.
With agitation system for preparation. Polypropylene agitators tanks
Direct answers to the most common questions about this equipment and its application.
The Skid Triblender is a compact mixing system designed for the quick incorporation of powders into liquids. It uses a rotor-stator system to generate high shear, which is essential for creating homogeneous, lump-free mixtures in the food and pharmaceutical industries.
The integrated rotor-stator system works by sucking liquid and solid ingredients into a mixing chamber where the rotor rotates at high speed inside a fixed stator. This process generates high mechanical and hydraulic shear, forcing materials through small openings and ensuring a perfect emulsion.
Yes, the Skid Triblender Mixers is highly versatile and was developed both for recirculation in tanks and for product transfer. It can be configured with one or two pumps to optimize the flow according to the needs of your process.
Agimix's Process Skid Tanks and Reactors use polypropylene agitator tanks. This material offers excellent chemical resistance and durability, making it ideal for preparing solutions in volumes of up to 10,000 liters.
No, Agimix manufactures its own tanks with a maximum capacity of up to 10,000 liters. For industries that operate with large-scale vessels, we exclusively supply the agitation and mixing system, which is custom-designed to be installed in the tank that the customer already has.
The main advantage of a skid mixing system is its compact, pre-assembled structure, which facilitates installation and mobility in the industrial plant. Furthermore, it provides proportional pumping that guarantees optimal stability of emulsions and drastically reduces preparation time.
Yes, Skid Triblender perfectly meets the rigorous standards of the pharmaceutical industry. Its ability to perform high shear mixing without incorporating excess air ensures the integrity and homogeneity of the active ingredients in the solutions.
The equipment prevents lumps by promoting immediate contact between the powder and the liquid under intense turbulence and high shear. The powder is incorporated directly into the liquid flow before entering the rotor-stator system, ensuring instant and complete hydration of the particles.
Talk to our experts and discover how Skid Triblender can optimize your production line with maximum efficiency.
