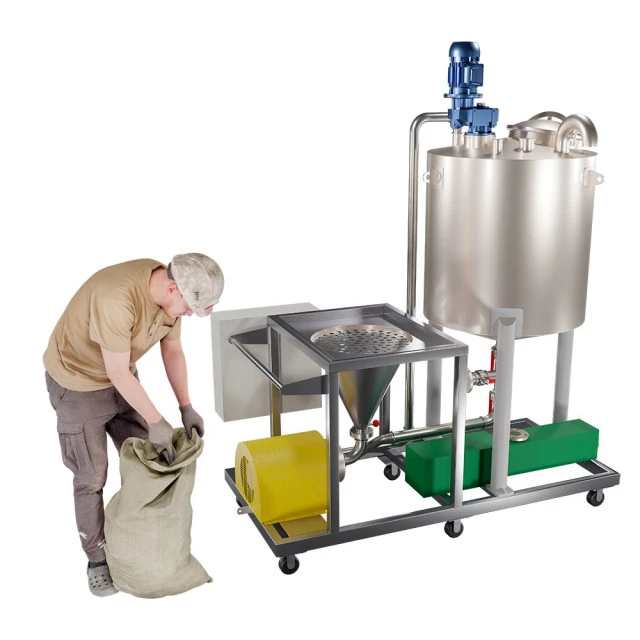

The Skid Triblender for cosmetics is an integrated mixing system designed for the rapid incorporation of powder and liquid ingredients, being essential in the manufacture of gels, shampoos and conditioners. Using an advanced integrated rotor-stator system, this equipment eliminates the agglomeration of particles, ensuring a homogeneous and stable mixture from the first passage of the fluid.
In the cosmetic industry, the breaking of lumps and the stability of emulsions are critical challenges that directly affect the quality of the final product. To solve this, the Skid Triblender Mixers works with proportional pumping and high shear, presenting itself as a versatile solution both for recirculation in tanks and for direct transfer of the cosmetic to the filling line.
With 15 years in the industrial agitation and mixing solutions market, Agimix develops complete projects that optimize your production line. Our Process Skid can be configured with one or two pumps, perfectly integrating the High Shear Pump to ensure maximum efficiency in breaking down solids and recirculating process.
In addition to significantly speeding up preparation time, the use of an automated mixing system reduces the waste of high-value raw materials, such as thickeners and active ingredients. The result is a cosmetic with perfect texture, ideal shine and optimal emulsion stability, meeting the most rigorous quality standards in the hygiene and beauty sector.
The advanced rotor-stator system guarantees the total breakdown of particles, resulting in gels and shampoos with a perfectly smooth texture.
Proportional pumping technology with high shear provides optimal stability of emulsions, vital for the quality of cosmetics.
The Skid Triblender Mixers allows both recirculation in tanks and the direct transfer of the finished product on the line.
The simultaneous and continuous incorporation of powders and liquids accelerates the preparation of shampoos and conditioners, increasing plant productivity.
Supplied as a complete Process Skid, the system already includes the necessary pumps and piping for a quick and safe installation.
These specifications are not fixed for every piece of equipment: they represent possibilities available on some of the listed models. Contact our sales team to confirm the information and the ideal configuration for your operation.
| Mixing System | High shear integrated rotor-stator |
| Pumping Setup | Equipped with one or two pumps |
| Contact Material | 316L Stainless Steel (sanitary standard) |
| Main Applications | Recirculation in tanks and fluid transfer |
| Processing Capacity | 1,000 to 20,000 liters per hour (according to project) |
| Sealing | Single or double sanitary mechanical seal |
| Internal Finish | Sanitary polishing (Ra < 0.8 µm) |
Ideal high shear pumps for lump breaking and process recirculation.
Agimix's triblender mixture system, equipped with one or two pumps and an advanced integrated rotor-state system, is a versatile solution for both tanks and transfer recirculation.
With agitation system for preparation. Polypropylene agitators tanks
Direct answers to the most common questions about this equipment and its application.
The Skid Triblender is a mixing system designed to incorporate powdered ingredients into liquids quickly and homogeneously. In the cosmetic industry, it is essential for the preparation of gels and shampoos, as it prevents the formation of lumps and guarantees the stability of the emulsion from the first stage of the process.
The equipment uses an integrated rotor-stator system that generates a vacuum to suck the powder directly into the liquid flow. This mechanical action, combined with high shear, disperses particles instantly before clumps have a chance to form.
Yes, the Skid Triblender Mixers is a highly versatile solution designed for both recirculation in tanks and for transferring the product along the production line, optimizing the factory layout.
Our system can be equipped with one or two pumps, depending on the viscosity of the cosmetic and the need for pressure in the customer's line. This configuration guarantees highly efficient and customizedproportional pumping.
The High shear pump is ideal for breaking lumps and continuous recirculation of the process. It ensures that thickeners and surfactants are completely dissolved, resulting in a translucent, homogeneous and stable shampoo.
Agimix provides the complete Process Skid, which can include polypropylene agitator tanks or stainless steel of up to 10,000 liters, or the mixing system can be perfectly interconnected to the tanks that the customer already has in their industrial plant.
Yes, by configuring the skid with auxiliary positive displacement pumps, the system can process high viscosity fluids without losing efficiency. This maintains the optimal stability of emulsions even when manufacturing thick creams and hair masks.
The equipment is built with strict sanitary design and is fully compatible with CIP (Clean-In-Place) systems. This allows washing and sanitizing the entire mixing system without the need to disassemble the parts, saving time and ensuring asepsis.
