Name: Fluxos AF Submersible Mixer
Brand: AGIMIX
SKU: 349
Availability: PreOrder

Fluxos AF Submersible Mixer

Agimix is the official representative of the renowned SCM Tecnologie in Brazil, bringing the Submersible Agitator to the national market.

Product Description

AF Series accelerators are essential in wastewater treatment, operating in nitrification, denitrification, and activated sludge tanks. They ensure the necessary movement for biological processes and high-efficiency disinfection systems.

In industry, they are applied in chlorination tanks and biogas digesters to guarantee complete homogenization. Their use prevents sludge stratification and dead zones, maintaining biomass process stability.

Through gearboxes, the low rotation of the blades generates currents that recirculate the fluid and distribute oxygen evenly. This mechanism optimizes aeration systems, combining high performance with energy savings.

Technical Features and Advantages

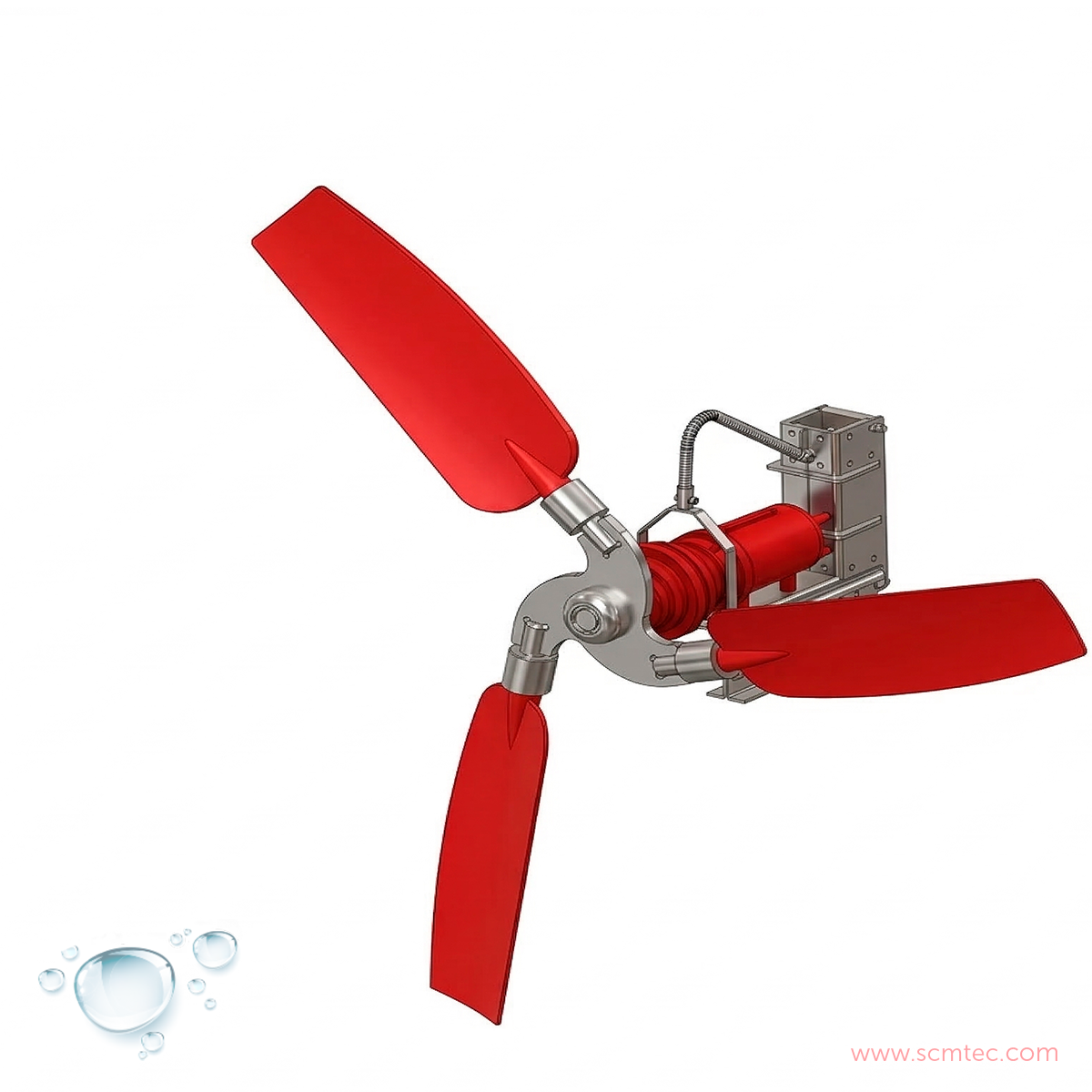

The flow accelerator from SCM Tecnologie is the ideal solution for wastewater treatment processes, ensuring homogenization and efficient movement of large volumes of liquid.

High Mixing Performance:Equipped with a 2.3-meter diameter propeller, designed to generate maximum propulsion with low energy consumption.
Robust Construction: Motor body and gearbox made of cast iron, ensuring durability in harsh environments.
Blade Technology: Propeller blades manufactured in polyamide and fiberglass, offering lightness and superior chemical resistance.
High-Security Sealing: Features a double mechanical seal system in silicon carbide and Viton, preventing leaks and protecting the motor.

Specifications:

Number of blades: 3
Motor power (P2): 3 kW
Weight: 122 kg
Rotation direction: Clockwise (viewed from behind)
Thermal protection: Integrated in the stator (bimetallic) to prevent overheating damage
