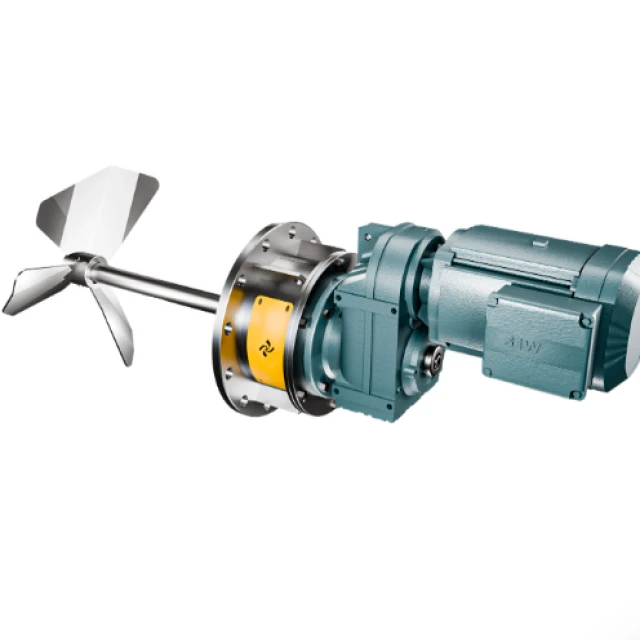

The side agitator for liquid digestate is equipment designed to maintain homogeneous biomass in large reservoirs of biogas plants, preventing the sedimentation of solids and the formation of surface crusts. Focusing on maximum efficiency, the Industrial agitatorLateral/Horizontal guarantees the fluidity necessary to facilitate continuous pumping of the processed organic material.
In biogas plants and treatment plants, the storage of digested sludge requires constant and vigorous agitation. Our agitation solutions for digestate tanks are installed directly in the large reservoirs that the customer already has, providing complete mixing without the need to empty the system. For smaller volumes, up to 10,000 liters, we also supply complete Industrial Process Tanks and Reservoirs, developed and manufactured to achieve maximum performance and durability for your process.
Agimix has been in the industrial agitation and mixing solutions market for 15 years, delivering robust projects for the industry in general. Our equipment offers high performance, combined with ease of installation and maintenance, ensuring operational efficiency and reliability in the biodigestion and effluent treatment process.
Depending on the reservoir geometry and fluid rheology, the project can be complemented by a Vertical Agitator, developed with advanced engineering to maximize process efficiency, reducing the plant's energy consumption and ensuring high operational performance at any production scale.
Continuous directional flow prevents solids from accumulating at the bottom, ensuring a homogeneous liquid digestate ready for safe pumping.
The Industrial agitatorLateral/Horizontal uses propellers with a hydrodynamic profile that reduce electrical energy expenditure during continuous operation.
Made from special alloys and stainless steel, the equipment withstands the chemical aggressiveness of the digestate and the corrosive gases present in the environment.
The intelligent design allows quick interventions in the sealing system without emptying the tank, drastically reducing machine downtime.
We dimension the power and agitation angle specifically for the volume and density of the fluid in your reservoir.
These specifications are not fixed for every piece of equipment: they represent possibilities available on some of the listed models. Contact our sales team to confirm the information and the ideal configuration for your operation.
| Agitation Capacity | Designed for large tanks (installed in the customer's tank) or in Agimix tanks up to 10,000 liters |
| Building Material | 304 Stainless Steel, 316L Stainless Steel or special alloys upon request |
| Engine Power | 2 CV to 50 CV (depending on the volume and density of the digestate) |
| Propellant Type | Naval propeller, hydrofoil profile propeller or axial flow turbine |
| Sealing System | Single mechanical seal, double mechanical seal or gasket |
| Operation Rotation | 150 RPM to 400 RPM (medium to low speed agitation) |
| Fixation | ANSI or DIN standardized flange for installation on the tank side wall |
| Drive | High-efficiency helical gearmotor |
AGIMIX side entry agitators offer high performance, combined with ease of installation and maintenance, ensuring operational efficiency and process reliability.
AGIMIX industrial agitators are developed with advanced engineering to maximize process efficiency, reducing energy consumption and ensuring high operational performance.
Agimix industrial process tanks are developed and manufactured to achieve the maximum performance and durable to their process.
Direct answers to the most common questions about this equipment and its application.
The side agitator for liquid digestate is equipment fixed to the wall of reservoirs to homogenize the biomass resulting from biodigestion. It creates a horizontal flow that sweeps the bottom of the tank, preventing solids from settling and keeping the material fluid for the booster pumps.
Agitation is necessary to avoid phase separation and the formation of surface crusts or accumulation of sludge at the bottom. Maintaining the homogeneous mixture with an Industrial agitatorLateral/Horizontal ensures that pumping for disposal or agricultural application occurs without blockages in the pipes.
No, Agimix only supplies the industrial agitation system to be installed in the large concrete or steel reservoirs that the plant already has. For smaller processes, we manufacture Industrial Process Tanks and Reservoirs with a maximum capacity of up to 10,000 liters.
The ideal material is 316L stainless steel or higher alloys, due to the presence of highly corrosive compounds such as hydrogen sulfide gas and ammonia. The correct choice of metal alloy guarantees the longevity of the equipment and the safety of continuous operation.
Maintenance is facilitated by a mechanical closing system or block valve integrated into the equipment flange. This mechanism allows the mechanical seal to be changed or the gear motor to be repaired without the need to empty the digestate reservoir.
Yes, the use of a Vertical Agitator is possible and very efficient, depending on the dimensions of the tank and the support structure available on the roof. Advanced engineering projects evaluate the geometry of the reservoir to define whether lateral or vertical agitation will deliver the best performance for your plant.
Power varies from 2 HP to 50 HP, depending on the total volume of the tank, the suspended solids content and the viscosity of the sludge. Our engineers carry out exact sizing to reduce energy consumption and ensure high operational performance.
Yes, Agimix agitators are designed for continuous work in harsh industrial environments. We use highly durable gear motors and robust sealing systems to ensure reliability in the effluent treatment and biogas generation process.
Speak to our experts and discover how a digestate side shaker can optimize the operation of your biogas plant.
